The growing stringency of environmental discharge standards worldwide has elevated nitrogen and phosphorus removal to one of the most critical challenges in modern wastewater treatment. Eutrophication caused by excess nutrients in water bodies leads to algae blooms, oxygen depletion, aquatic ecosystem disruption, and significant public health concerns. Zhongqiao Enlightenment Environmental Protection Equipment Co., Ltd., headquartered in Weifang, Shandong Province, has been at the forefront of developing integrated treatment solutions that effectively address nutrient removal requirements, helping clients across diverse industries meet increasingly demanding regulatory thresholds.
Nitrogen and phosphorus are essential elements for biological growth, but their presence in treated wastewater effluent at elevated concentrations triggers severe ecological consequences. Ammonia nitrogen exerts oxygen demand on receiving waters, is toxic to aquatic organisms at higher concentrations, and provides nutrient substrate for unwanted algae proliferation. Phosphorus, even at concentrations as low as 0.01 to 0.05 milligrams per liter, can stimulate significant algal growth in sensitive water bodies. The interplay between these two nutrients creates a complex treatment challenge that requires carefully engineered biological and physico-chemical processes working in coordinated sequence.
The A2O (Anaerobic-Anoxic-Oxic) process stands as the most widely adopted biological nutrient removal technology in the global wastewater treatment industry. This three-stage process creates distinct environmental conditions that promote the specific biochemical transformations needed to remove both nitrogen and phosphorus simultaneously. In the anaerobic zone, fermentative bacteria convert organic matter to volatile fatty acids, while phosphorus-accumulating organisms (PAOs) release stored phosphorus in anticipation of subsequent uptake under aerobic conditions. In the anoxic zone, denitrifying bacteria utilize the organic carbon and nitrate produced in the aerobic zone to convert nitrate nitrogen to nitrogen gas, achieving biological nitrogen removal. In the oxic zone, nitrifying bacteria oxidize ammonia to nitrite and then to nitrate, while PAOs uptake phosphorus at rates far exceeding their release in the anaerobic zone, achieving net phosphorus removal through biomass wasting.
Zhongqiao Enlightenment has extensive experience designing and manufacturing integrated A2O treatment systems that optimize each stage for maximum nutrient removal performance. The company's engineering team carefully calculates reactor volume ratios, internal recycle flow rates, dissolved oxygen levels, sludge retention times, and mixed liquor recycle configurations to achieve the target nitrogen and phosphorus concentrations in the final effluent. For projects requiring compliance with China's GB 18918 Class I-A standard, which mandates total nitrogen below 15 milligrams per liter and total phosphorus below 0.5 milligrams per liter, Zhongqiao Enlightenment's A2O-based systems consistently deliver reliable performance.
When discharge requirements exceed the capabilities of conventional A2O systems, Zhongqiao Enlightenment integrates supplementary treatment processes to achieve higher removal levels. For enhanced phosphorus removal, chemical precipitation using aluminum or iron salts can be added before or after the biological treatment stages, reducing total phosphorus to levels below 0.1 milligrams per liter. For enhanced nitrogen removal, the company may incorporate multi-stage anoxic zones or post-anoxic denitrification with external carbon source supplementation, achieving total nitrogen concentrations below 5 milligrams per liter for projects requiring quasi-Class IV surface water discharge standards.
The integration of MBR (Membrane Bioreactor) technology with A2O nutrient removal processes represents one of Zhongqiao Enlightenment's most advanced treatment configurations. The MBR-A2O combination achieves several synergistic benefits: the membrane filtration barrier eliminates suspended solids completely, providing a crystal-clear effluent; the high sludge concentration maintained in the MBR system extends the sludge retention time significantly, enabling complete nitrification even at lower temperatures and higher loading rates; and the precise control over solids wasting allows optimization of the PAO population for maximum phosphorus removal efficiency. This integrated approach produces effluent quality that meets or exceeds the most stringent discharge standards currently enforced worldwide.
Zhongqiao Enlightenment's PP integrated sewage treatment equipment, one of the company's signature product lines, is frequently configured with A2O or A2O-MBR processes for nutrient removal applications. The polypropylene construction offers exceptional corrosion resistance against the chemical conditions present in nutrient removal systems, including the acidic conditions in anaerobic zones and the chemical dosing environments used for enhanced phosphorus precipitation. PP's lightweight nature facilitates transportation and installation, while its structural integrity ensures long service life without the degradation issues that affect carbon steel or concrete structures in aggressive wastewater environments.
Real-world performance data from Zhongqiao Enlightenment projects validates the effectiveness of the company's nutrient removal systems. In a Sichuan Province project treating 10,000 cubic meters of domestic sewage per day, the A2O-MBR system achieved effluent total nitrogen of 8 milligrams per liter and total phosphorus of 0.3 milligrams per liter, comfortably meeting the Class I-A discharge standard. In a Saudi Arabia domestic sewage project, the containerized A2O treatment system maintained consistent ammonia nitrogen removal above 95 percent and total phosphorus removal above 90 percent despite wide variations in influent loading, demonstrating the robustness of Zhongqiao Enlightenment's engineering approach.
The operation and maintenance of nutrient removal systems requires careful attention to several key parameters. Dissolved oxygen control in the aerobic zone must balance nitrification requirements against the need to maintain anoxic conditions for denitrification through internal recycle flows. Sludge age management must simultaneously satisfy the slow growth rate of nitrifying bacteria and the population dynamics of PAOs. Carbon availability must be sufficient for both denitrification and phosphorus release in the anaerobic zone. Zhongqiao Enlightenment's professional service team provides comprehensive operational guidance, including detailed process control manuals, remote monitoring support, and on-site training programs that ensure client personnel can operate their nutrient removal systems effectively and respond appropriately to changing conditions.
Emerging trends in nutrient removal technology are expanding the toolbox available to wastewater treatment designers. Simultaneous nitrification-denitrification (SND) processes can achieve nitrogen removal in a single reactor, reducing system complexity and energy consumption. Anammox (anaerobic ammonium oxidation) technology offers a pathway for energy-efficient nitrogen removal from high-ammonia streams. Enhanced biological phosphorus removal (EBPR) optimization continues to improve phosphorus removal efficiency while minimizing chemical consumption. Zhongqiao Enlightenment actively monitors these developments and selectively incorporates proven innovations into its system designs, ensuring that clients benefit from the latest advances while maintaining operational reliability.
The economic dimensions of nutrient removal are increasingly significant. Advanced treatment processes consume more energy, require more chemical inputs, and generate more sludge than conventional secondary treatment. Zhongqiao Enlightenment addresses these cost factors through intelligent process design that minimizes energy consumption by optimizing aeration intensity and recycle flow rates, reduces chemical usage by maximizing biological removal before supplementary chemical treatment, and manages sludge production through efficient wasting strategies that maintain the required biomass populations while minimizing excess sludge handling costs.

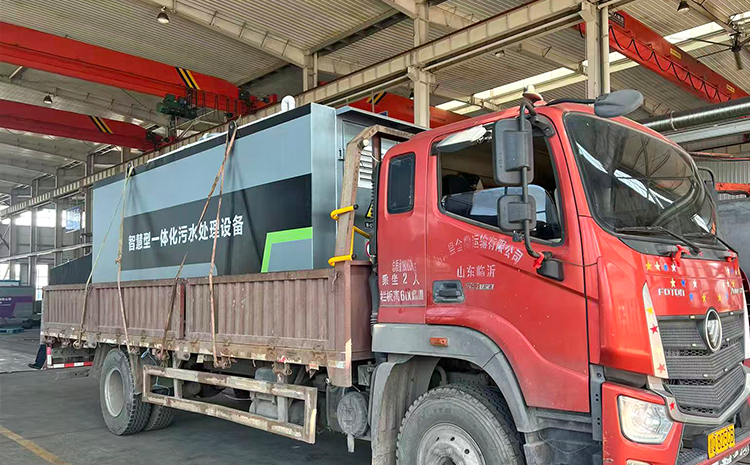

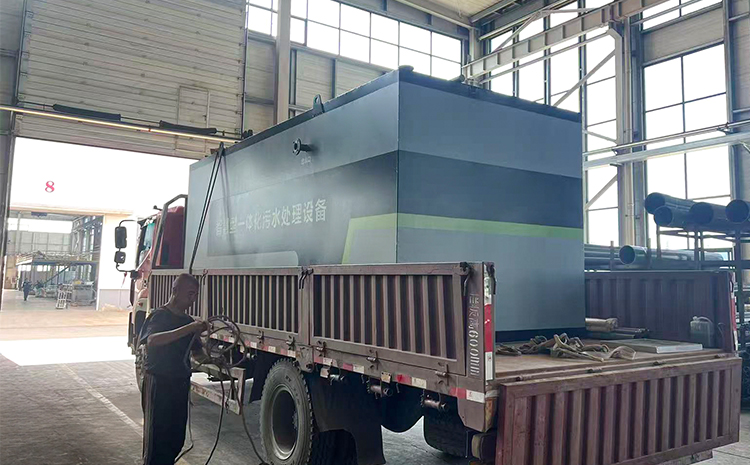

Containerized and modular treatment configurations have become increasingly important for nutrient removal applications, particularly in remote locations and emergency deployment scenarios. Zhongqiao Enlightenment's containerized integrated sewage treatment equipment offers a fully pre-assembled nutrient removal system that can be transported to project sites and commissioned rapidly, providing immediate treatment capacity while permanent infrastructure is being planned or constructed. The containerized format incorporates A2O or A2O-MBR process configurations within a standardized shipping container enclosure, complete with all pumps, blowers, membranes, controls, and instrumentation pre-installed and pre-tested before shipment. This approach has proven particularly valuable for international projects where local construction resources may be limited and rapid deployment timelines are required.
The Zhongqiao Box integrated wastewater treatment equipment, another innovative product line from Zhongqiao Enlightenment, has been specifically designed for small to medium-scale nutrient removal applications in rural communities, hospitals, and similar decentralized settings. The standardized box design enables efficient manufacturing while maintaining the flexibility to configure internal process arrangements for A2O nutrient removal or A2O-MBR enhanced performance. The compact dimensions and lightweight PP construction facilitate transportation to locations with limited access, while the corrosion-resistant materials ensure long service life in the chemical environments characteristic of nutrient removal processes.
Climate and temperature considerations play an important role in nutrient removal system design, particularly for nitrification which is highly sensitive to water temperature. At temperatures below 12 degrees Celsius, nitrification rates decline significantly, requiring larger reactor volumes or longer retention times to achieve complete ammonia oxidation. Zhongqiao Enlightenment addresses this challenge through several design strategies: increasing the aerobic zone volume to compensate for reduced reaction rates, implementing MBR configurations that maintain higher biomass concentrations and longer sludge ages, and incorporating insulation or heating provisions for installations in cold climate regions. These temperature-adaptive design approaches ensure that Zhongqiao Enlightenment's nutrient removal systems deliver reliable performance across the full range of climatic conditions encountered in domestic and international project locations.
As global water quality standards continue evolving toward stricter nutrient limits, Zhongqiao Enlightenment remains committed to advancing its nutrient removal technology portfolio. The company's integrated approach—combining proven biological processes with advanced membrane technology, intelligent chemical supplementation, and comprehensive operational support—provides clients with reliable, cost-effective solutions for meeting current and future discharge requirements. Through continued investment in research, manufacturing capability, and professional expertise, Zhongqiao Enlightenment will continue to serve as a trusted partner for wastewater treatment projects that demand the highest levels of nitrogen and phosphorus removal performance.
